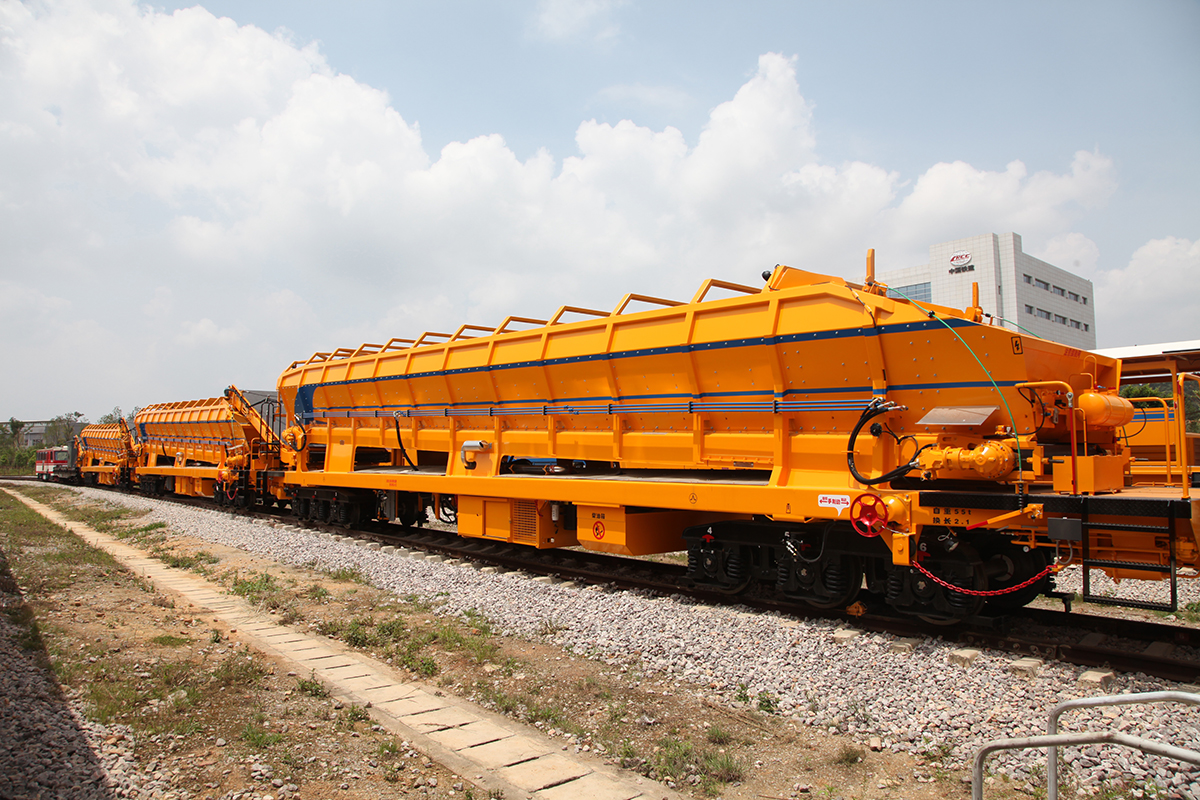

WY-100III Material conveyor
性能及特點
WY-100III material conveyor is a machine with the operating action speed of 0~0.25km/h and the larger towing mass. Several sets of this machine and the various models of international and domestic cleaning machines can be reorganized into a set of vehicles to move the waste generated during the cleaning operation under continuous cleaning operation. Based on the increasing utilization of roof, it effectively avoids the accumulation of dirt around the shoulder, multi-railway segment and station premises, so as to protect the environment and eliminate the manual secondary clean-up of traditional cleaning operation, which substantially improves the overall operating efficiency of cleaning (in general, the work quantity of secondary clean-up for the wasted dirt on the both sides of railway accounts for about more than 80% of the large cleaning machine usage amount). In addition, one or more such machines can tow DWY bucket material conveyor to work together with roadbed handling machine or cleaning machine to transport or deliver the waste or distribute the new material, thereby greatly reducing the equipment configuration costs.
主要技術(shù)參數(shù)Overall dimension (L × W × H):26750mm x3150mm x4190mm
Total weight (unloaded):55t
Gauge:1435mm
Power of diesel engine:181kW
Max. towed speed:120 km / h (unloaded) ? ? ? ? ??110 km / h (heavy load)
Distance between bogie pivots:14300mm?????? ???????????????????????????
Min. working radius:180m
Min. traveling radius:180m
Ballast hopper capacity:68 m3
Max. loading mass:95t
Conveying capacity:700 ~ 800 m3/ h
Clear time in full load:about 4min
